1.Compatibility in UV monomer and water(addition to total formulation)

ITEM	TMPTA				TPGDA				WATER
	0.1%	0.5%	1%	2%	0.1%	0.5%	1%	2%	0.1%	1.0%
Similarproduct	5	5	5	5	5	5	5	5	5	5
XOANONS?WE-D5450	5	5	5	5	5	5	5	5	5	4

0=unavailable5=veryeffective
2.Foam-inhibition & defoaming in varnish(0.1%addition to total formulation)

Varnish	Item	Foam-inhibition	Defoaming	Compatibility
Hydroxyl acrylic	Similarproduct	1	1	5
	XOANONS?WE-D5450	1	1	5
Short-oil alkyd	Similarproduct	0	1	5
	XOANONS?WE-D5450	0	1	5

0=unavailable5=veryeffective
3.Static surface tension (25℃ mN/m) (Diluted to 10% content)

System	Item	Addition0.5%	Addition0.8%
Hydroxyl acrylic	Similarproduct	23.806	23.597
	XOANONS?WE-D5450	24.819	23.500
Short-oil alkyd	Similar	24.694	24.278
	XOANONS?WE-D5450	25.583	24.611

Static surface tension is a measurement of wetting and spreading ability on the solid surface at a balanced surface tension. Lower value of static surface tension,
higher performance of wetting and spreading.

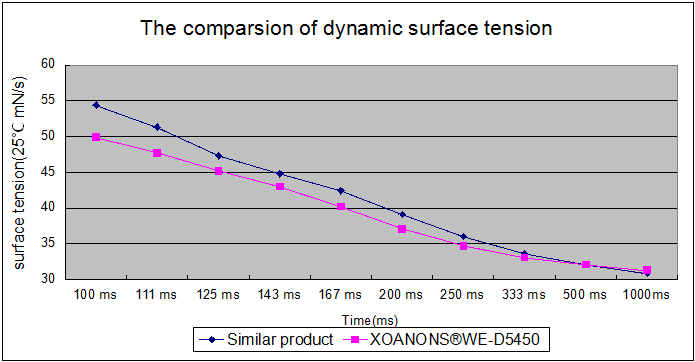

4.Dynamicsurfacetension(25℃mN/m)

Item	100ms	111ms	125ms	143ms	167ms	200ms	250ms	333ms	500ms	1000ms
Similarproduct	54.4	51.3	47.3	44.8	42.4	39.1	36.0	33.6	32.1	30.9
XOANONS?WE-D5450	49.9	47.7	45.2	43.0	40.2	37.1	34.7	33.1	32.1	31.3

Dynamic surface tension(DST) measured by bubble tensiometer is a symbolic application data of additive activity in paint, which means the ability of additive
dissemination from liquid to paint surface. Lower value of DST, higher speed of leveling.
5.Wave-scandualandgloss

Comment	dudullness	Wa0,1-0,3mm	Wb0,3-1,0mm	Wc1-3mm	Wd3-10mm	We10-30mm	DOI	20° gloss	60° gloss	85° gloss
Similarproduct	42.5	9.2	24.8	39.7	38.5	34.8	72.7	89.2	96.2	92.9
XOANONS?WE-D5450	41.9	8.9	25.8	40.3	38.2	34.6	73.0	89.2	96.1	92.9

long wave:1~30mm wave, can be watched in 3m distance. Lower value, better long wave leveling. short wave:0.1~1mm wave, can be watched in less than 3m distance.
Lower value, better short wave leveling. du value:Less than 0.1mm wave can not be watched by eyes. DOI value:distinctness of image, showing the clearance of
reflect gram. Higher value, better distinctness of image. The test dates provided by wave-scan dual reflect the effects of dry film leveling.
6.Frictioncoefficient

Item	μd
Similarproduct	0.143
XOANONS?WE-D5450	0.135

Friction coefficient (μd) measures the slip property. The lower value of friction coefficient, the better smooth feeling. Better smooth can provide excellent
scratch resistance.
7.Molecularweightanddistribution

Item	Mn	M.w.	Mp	Polydispersity
Similarproduct	2120	3202	3399	1.510048
XOANONS?WE-D5450	2187	3219	3319	1.471549
